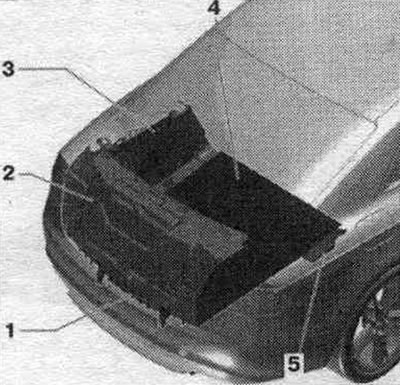

Trunk trim
1. Facing the edge of the rear. body parts.
2. Trunk lining.
3. Side trim of the trunk.
4. Trunk floor mat.
5. Loading frame.

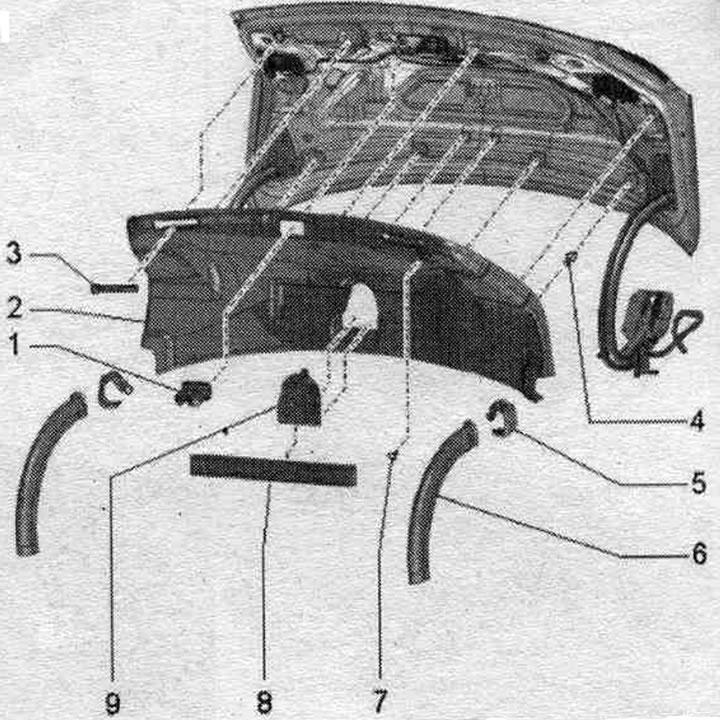

Trunk lining
1. Trunk lock trim.
2. Trunk lining.
3. Mounting bar: fixed to the trunk lid.
4. Clamp: 11 pcs.; insert into the cladding; replace if damaged or deformed.
5. Intermediate element.
6. Wire guide.
7. Bolt: 1.8 Nm.
8. Emergency stop sign.
9. Warning triangle holder.

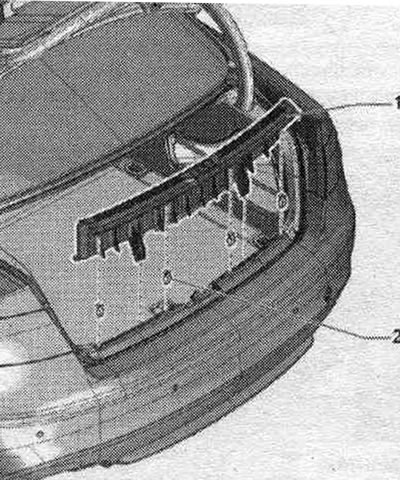

Rear lining. body parts
1. Facing the edge of the rear. body parts.
2. Clamp: 4 pcs.; insert into the cladding; replace if damaged or deformed.

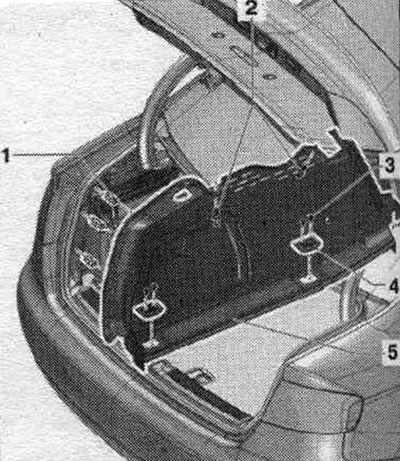

Side trim of the trunk
1. Clamp: 3 pcs.;-insert into the cladding; replace if damaged or deformed.
2. Expansion clamps; 2 pcs.
3. Bolt: 4 pcs.; 6 Nm.
4. Mounting eye: 2 pcs.
5. Side trim of the trunk.

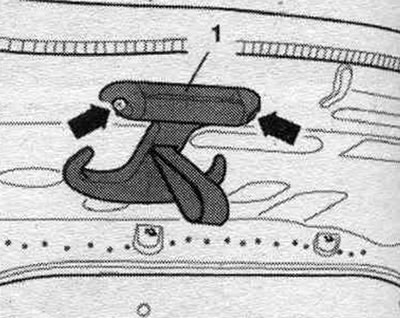

Tightening torque of the fastening hook on the body
Option with a mounting hook: tighten the arrow bolts to a torque of 1.5 Nm.

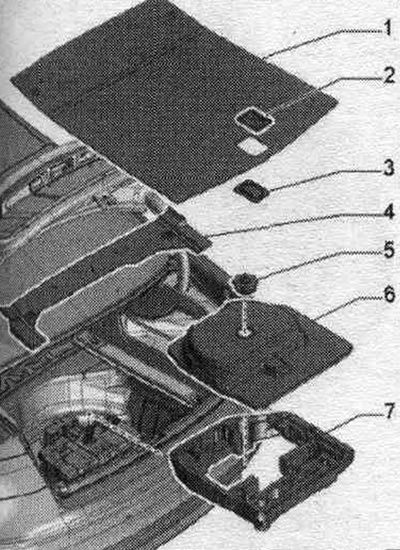

Trunk floor mat
1. Trunk floor mat.
2. Trunk floor mat holder.
3. Fixing frame for fastening the trunk floor mat.
4. Frame: for loading.
5. Nut: for securing the spare wheel; when tightened, it should click into place, otherwise you should tighten it further.
6. Tool kit box lid.
7. Tool kit box.
