Parking assistance system (from August 2004) (Audi A4 B7)

  • Home
  • Audi A4
  • B7 (2004-2008)
  • Electrical equipment
  • Electrical diagrams
  • Parking assistance system (from August 2004)
            0

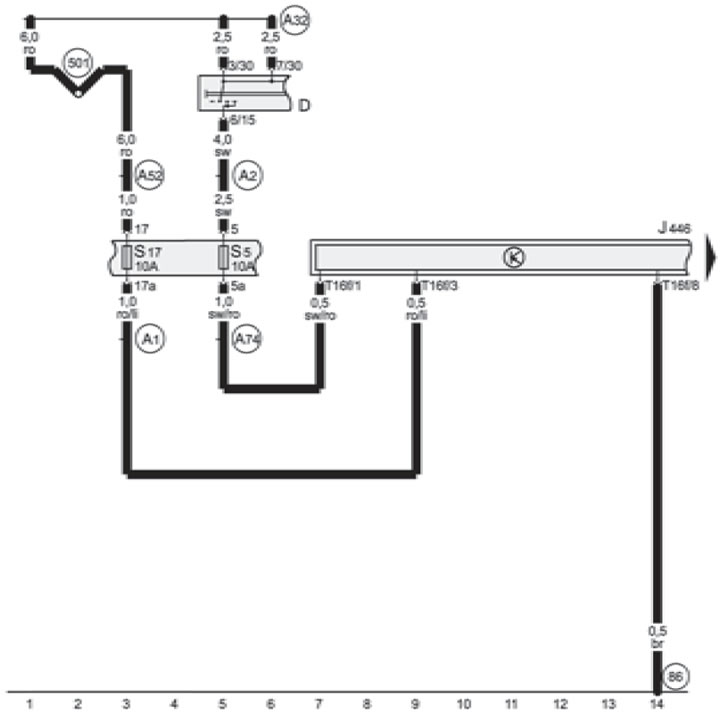

21-1 Parking Assist Module, Fuses

21-1 Parking Assist Module, Fuses

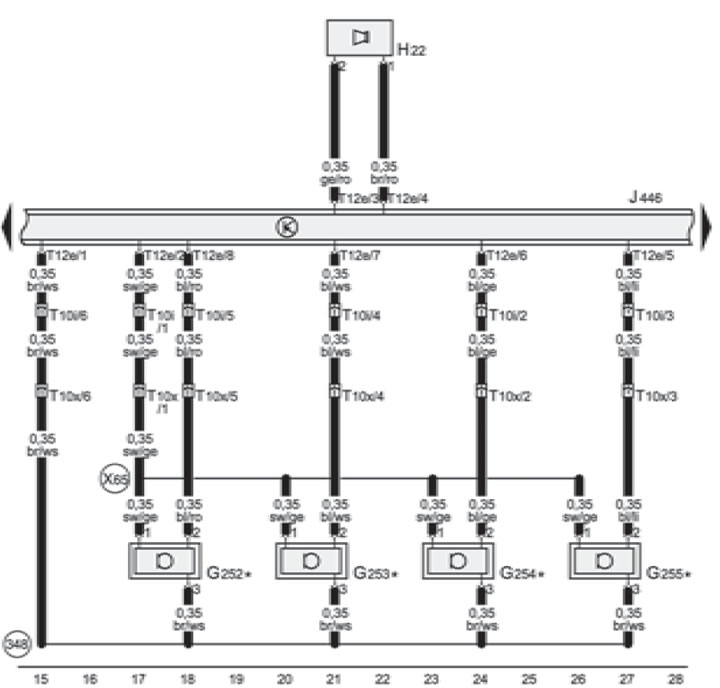

21-2 Parking assistance module, front sensors

21-2 Parking assistance module, front sensors
* models with front and rear parking assistance sensors

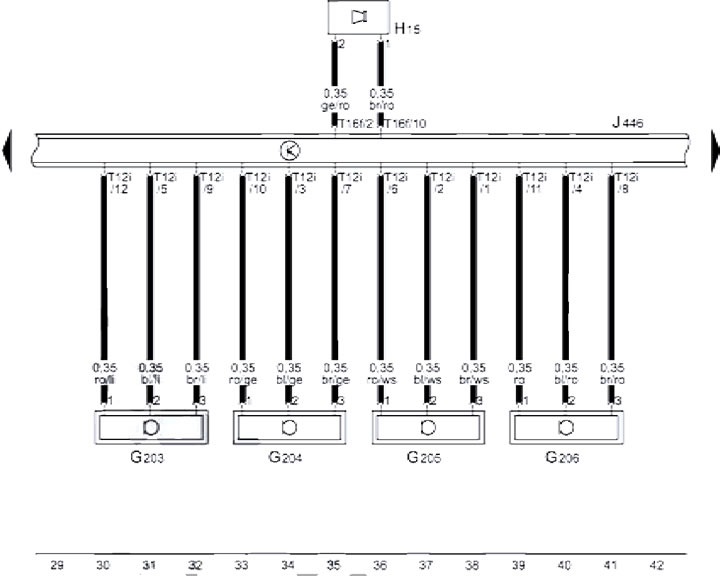

21-3 Parking assistance module, rear sensors

21-3 Parking assistance module, rear sensors

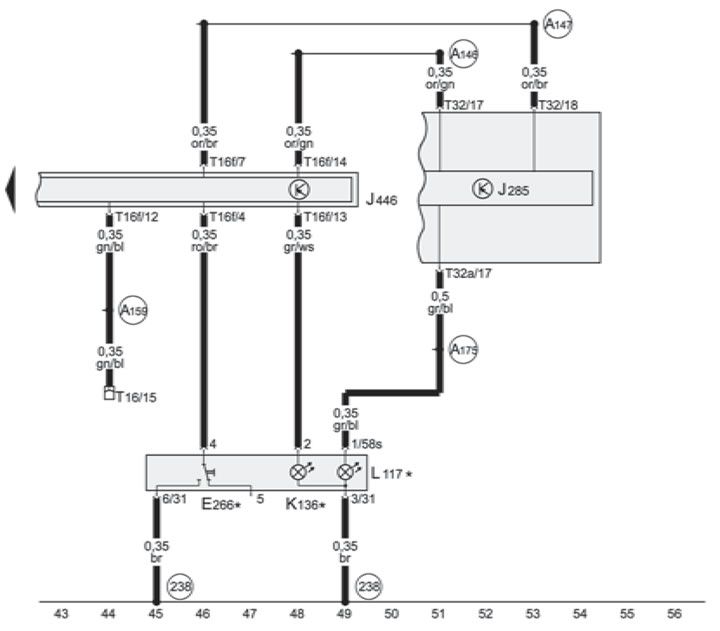

21-4 Parking Assist Module, Switch

21-4 Parking Assist Module, Switch
* for models with front and rear parking assistance sensors
