19-1,19-2 Mass connections
* section 4.0 is possible;
**section 6.0 is possible;
*** see ECM diagram

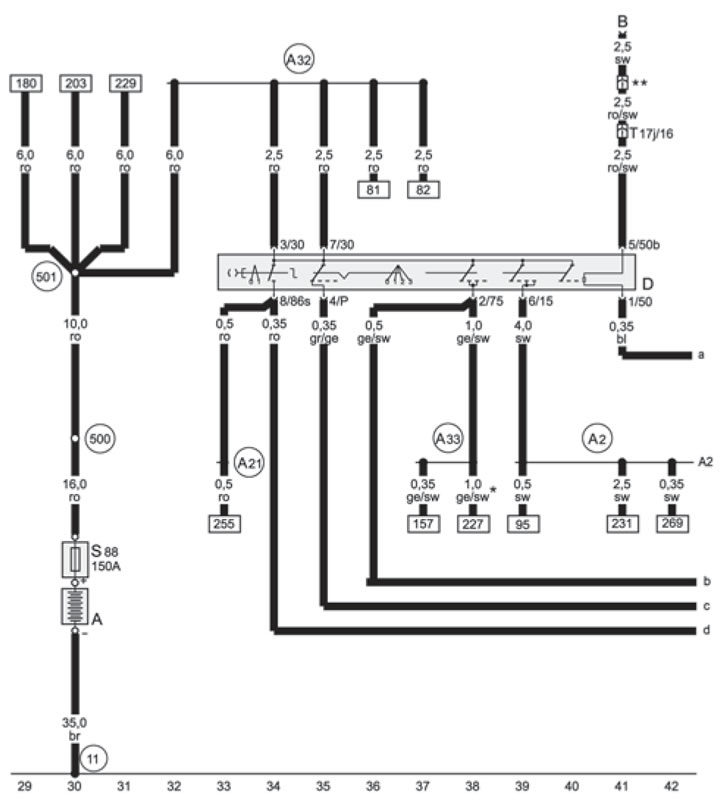

19-3 Ignition switch, main fuse
* for models with heated washer fluid nozzles;
**see ECM diagram

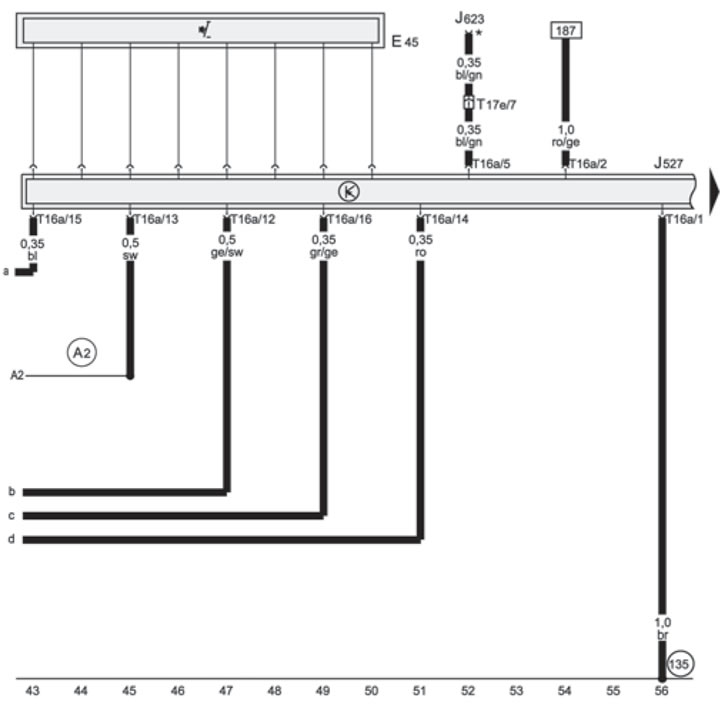

19-4 Steering Column Control Module, CCS
*see ECM diagram

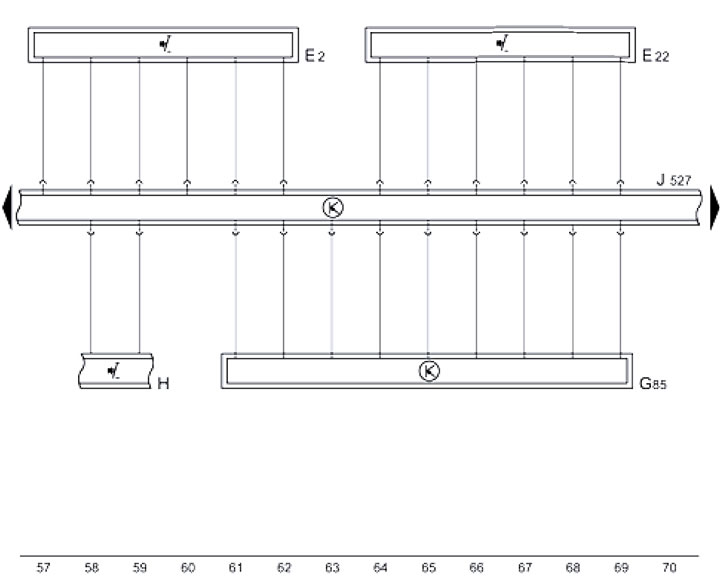

19-5 Turn signal switch, intermittent wiper switch, steering wheel angle sensor, horn switch, steering column control unit

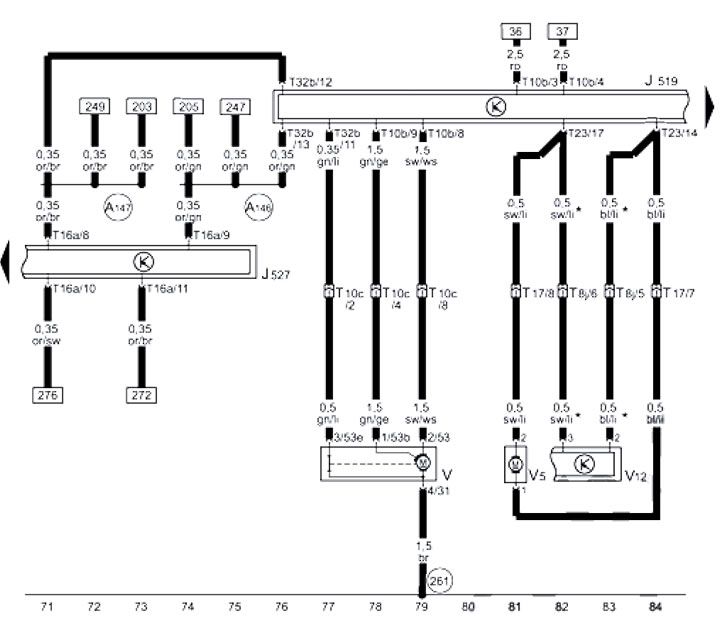

19-6 On-board power supply control unit, steering column control unit, windshield wiper motor, washer fluid supply pump, rear window wiper motor
* for Station wagon models

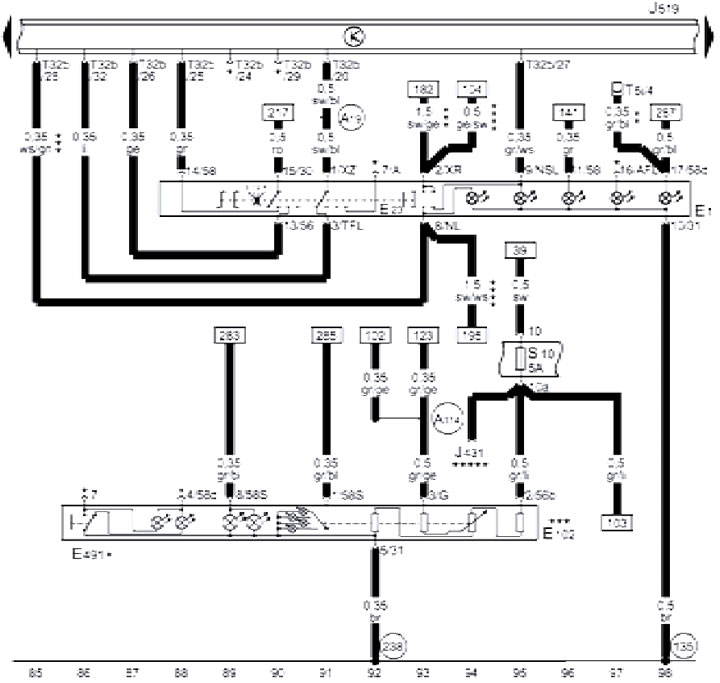

19-7 Light switch, headlight range control
*for models with automatic headlights/headlight cornering light;
**for Station wagon models;
***for models with headlight leveling adjustment;
****for models without headlight leveling;
*****for models with automatic headlight leveling

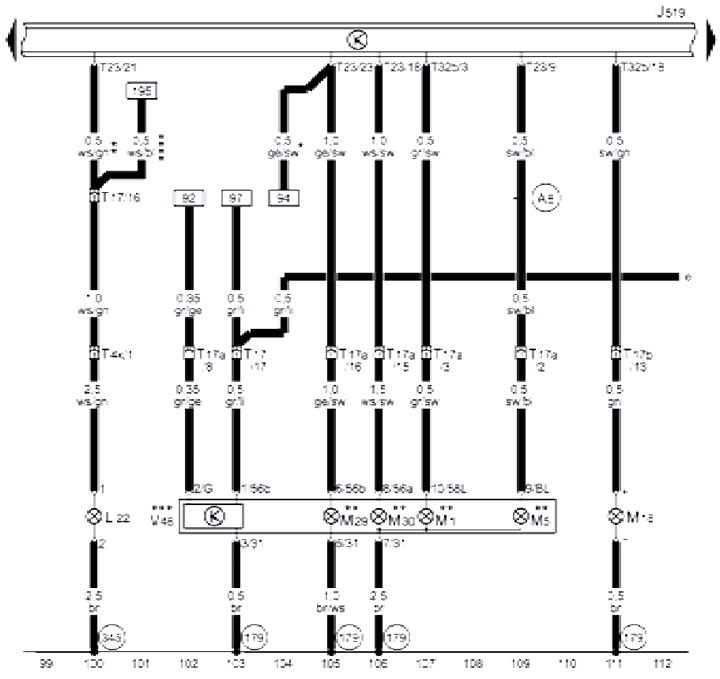

19-8 Left headlight
* for models without headlight leveling for models with high and low level headlights;
**for models with headlight leveling adjustment;
*** see diagram for low level headlights

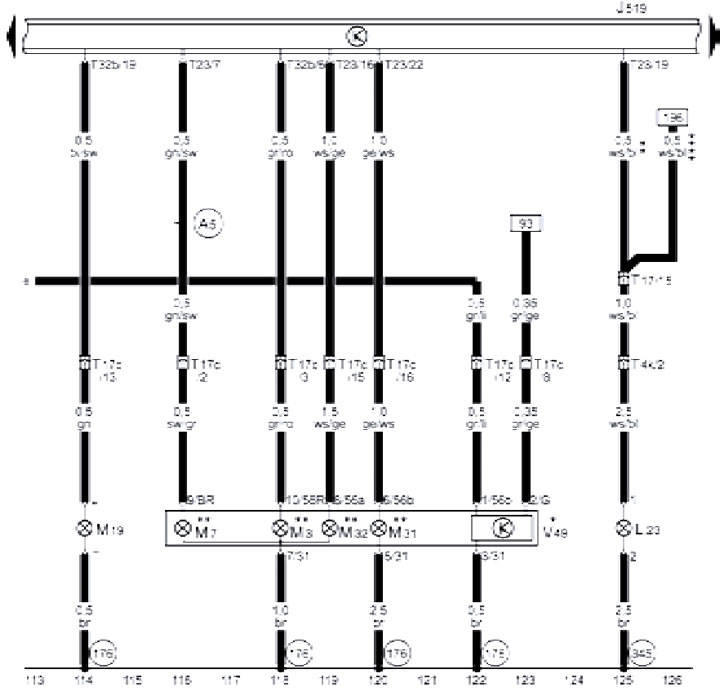

19-9 Right headlight
*for models with headlight leveling adjustment for models with high and low level headlights;
**for models with headlight leveling adjustment;
***see diagram for low level headlights

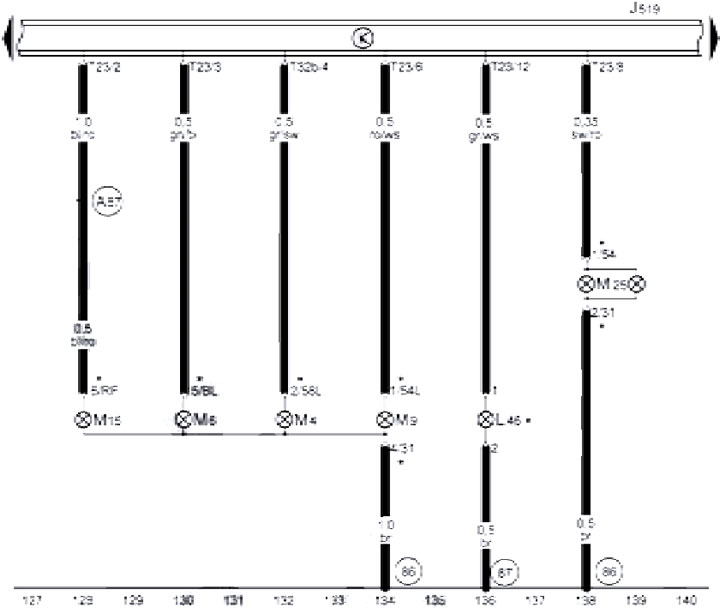

19-10 Left reversing light
* for Station wagon models

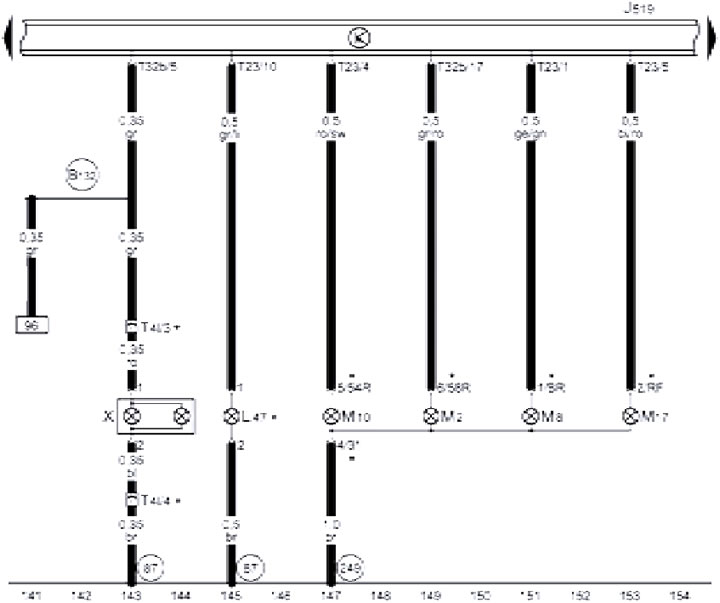

19-11 Right reversing light
*for Station wagon models

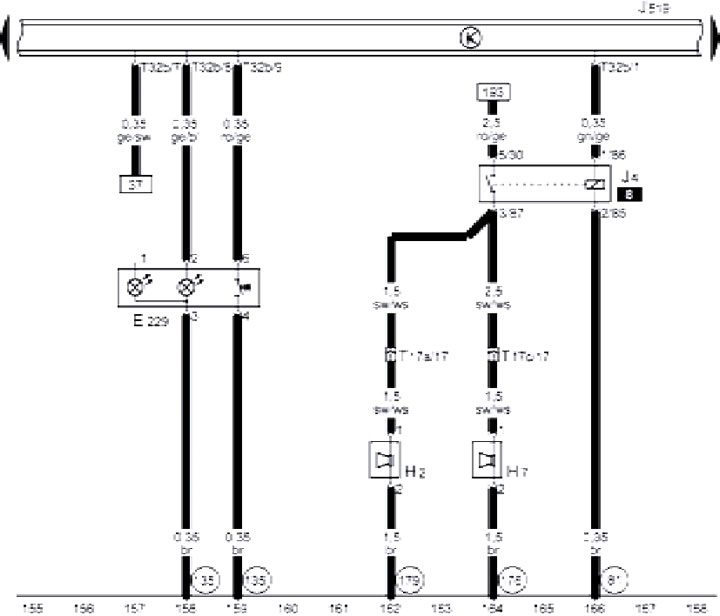

19-12 Hazard warning light switch, horn (high and low frequency horns)

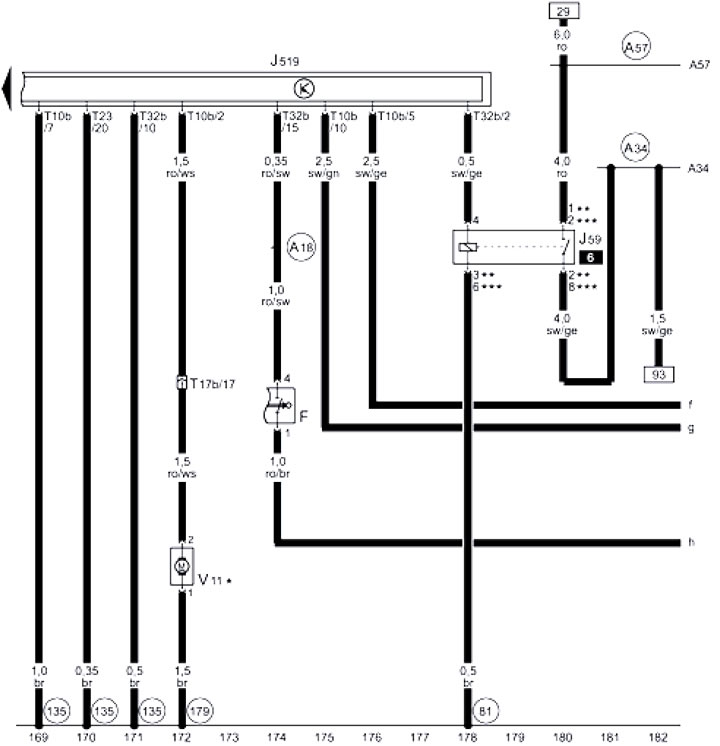

19-13 D/W brake lights, X-contact overflow relay, headlight washer pump
* Protection via fuse S237, for models with headlight washers;
** for models up to 2006.;
*** for models from 2007.

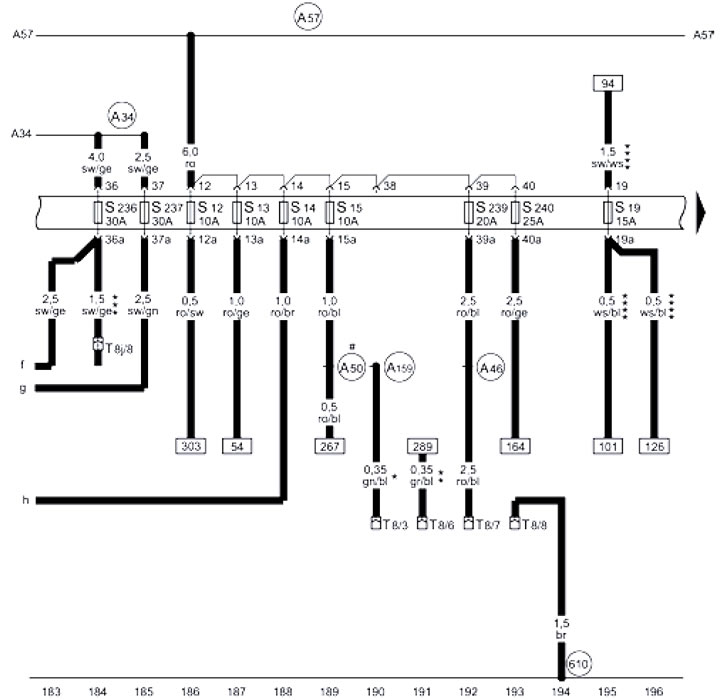

19-14 Fuses, connector III audio system
* for models with chorus/concert/symphony audio system;
** for models with audio preparation;
*** for Station wagon models;
**** see low level headlight diagram;
# no longer in use, gradual modification

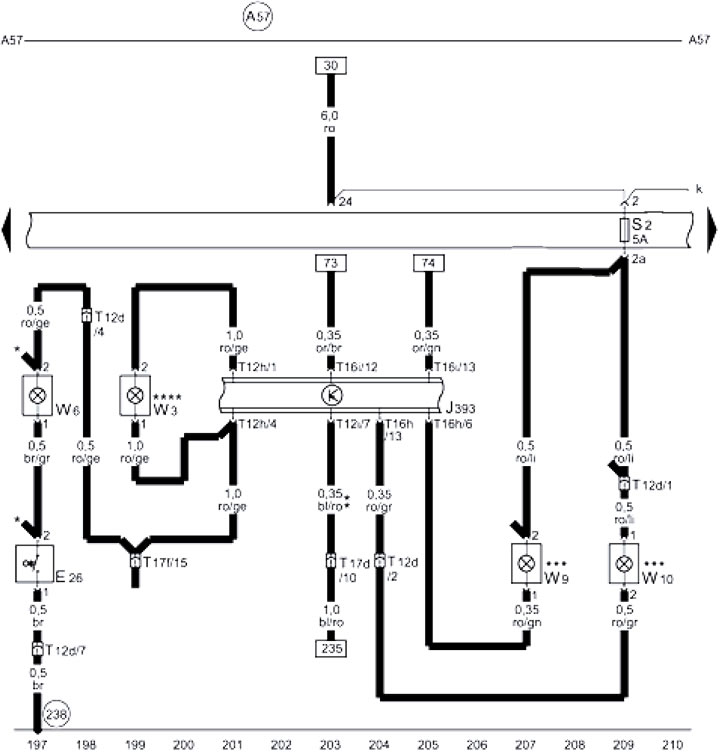

19-15 Lighting of the glove box and footwells
* for models with airbag switch;
** for models with manual transmission (not for all engines);
*** for models without the "lighting equipment" package;
**** for Station wagon models

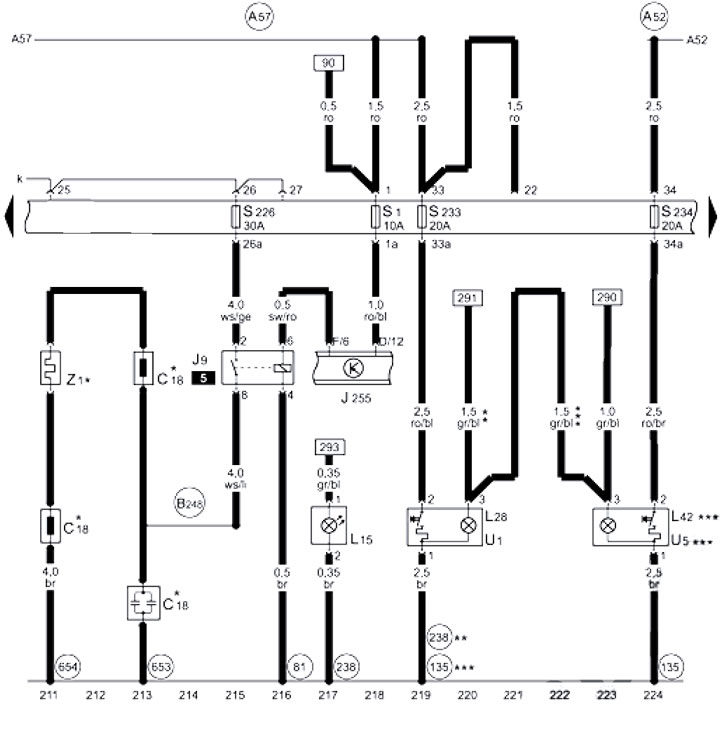

19-16 Rear window heating, 12V connector
* for Station wagon models;
**for models without 12V connector;
*** for models with 12V connector

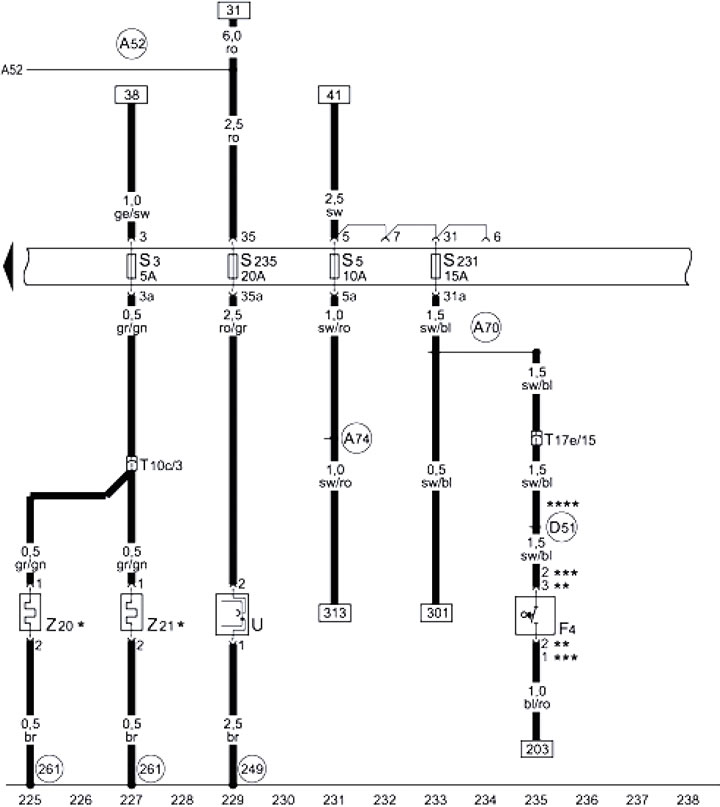

19-17 Reversing light switch, connector, windshield washer nozzle heating element
* for models with heated injectors;
** for models with 5-speed manual transmission;
***for models with 6-speed manual transmission, not for all engines, see ECM diagram

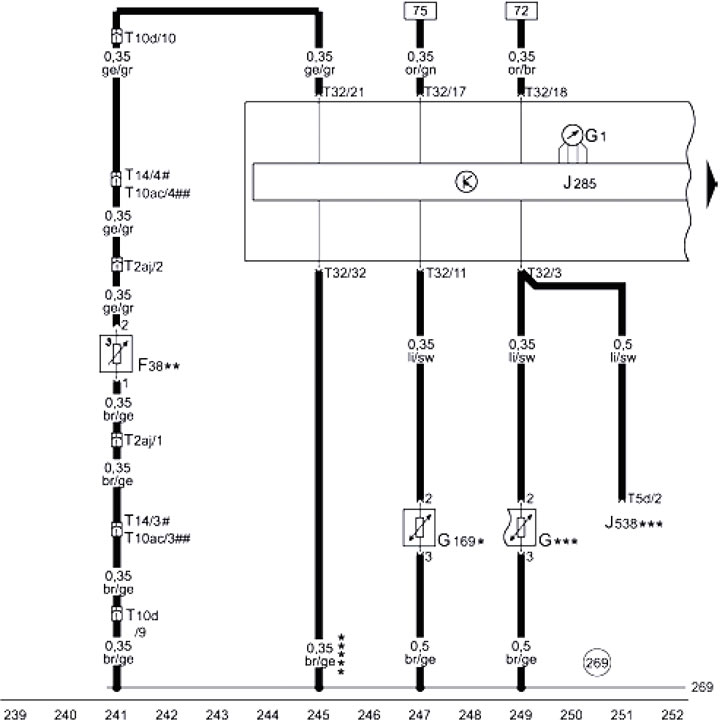

19-18 Control unit in instrument panel insert, outside air temperature sensor, fuel gauge, fuel gauge
* for AWD models;
**for BNS engine;
***not for all engines, see ECM diagram;
****output for ground signal;
#for models up to 2006.;
##for models from 2007.

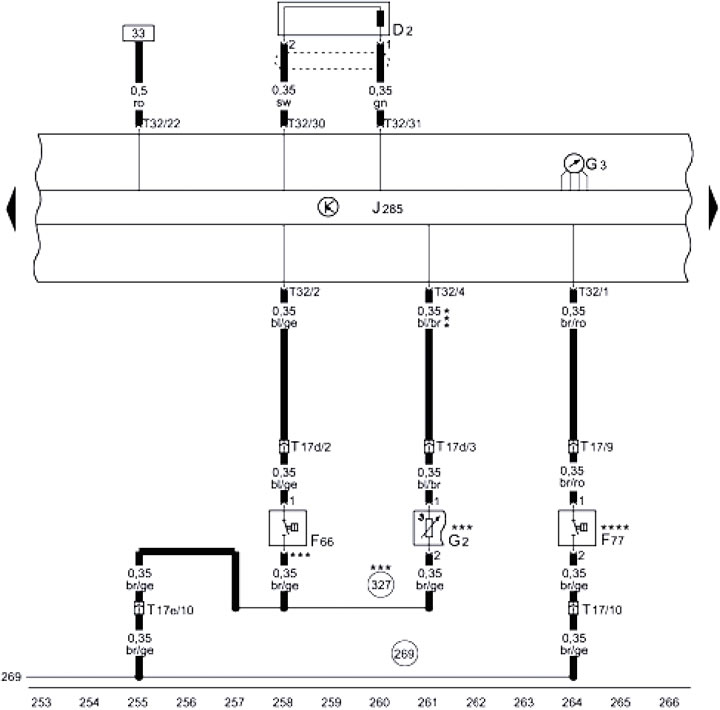

19-19 Immobilizer key code reading coil, Low coolant level D/W, Low washer fluid level D/W
*** not for all engines, see ECM diagram;
****for high level equipment

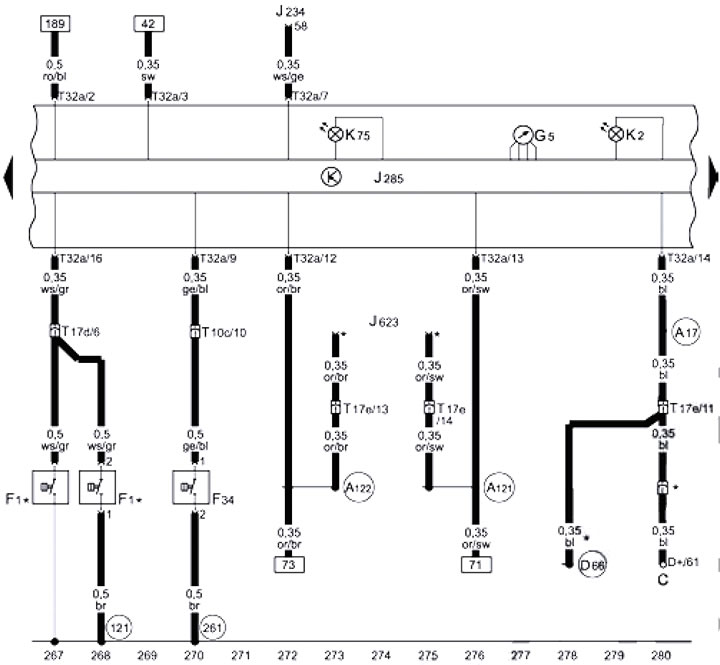

19-20 Engine oil pressure sensor, engine speed sensor
* see ECM diagram

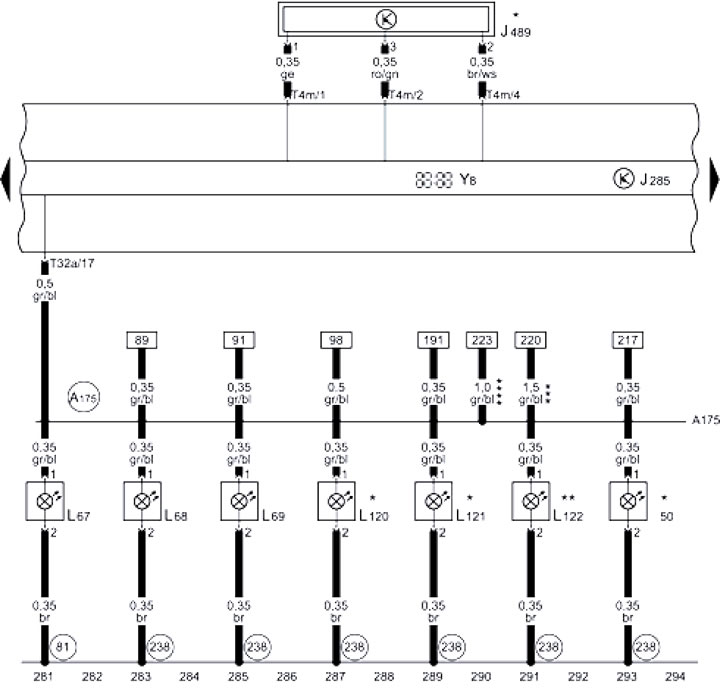

19-21 Climate control panel illumination, radio clock
*depending on equipment;
**except models with front parking sensors;
***for models without 12V connector;
****for models with 12V connector

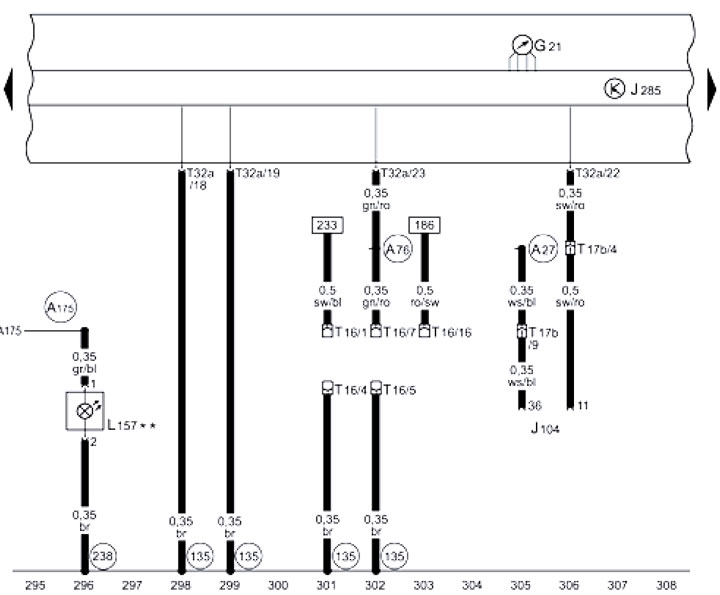

19-22 DLC, speedometer, central armrest lighting
*for models with central armrest

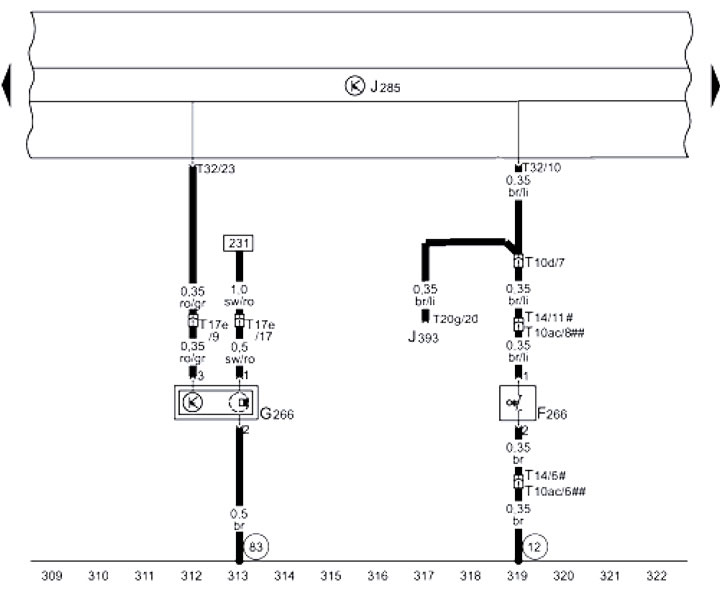

19-23 Hood contact switch, engine oil level and temperature sensor
# for models up to 2006.;
## for models from 2007.

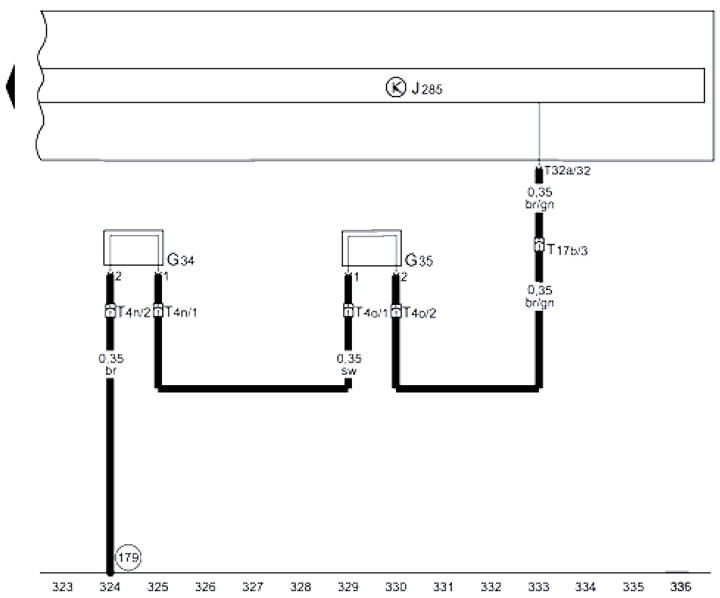

19-24 Brake pad wear sensor
