Withdrawal
1. Jack up the vehicle and place it on jack stands.
2. Remove the corresponding front wheel.
3. Unscrew a nut of a finger of a spherical support by which the directing lever fastens to a rotary fist. Leave the nut at the end of the pin. It will serve as a stop for the puller when the pin is pressed out and will prevent damage to the thread of the pin.
4. Press the guide arm ball joint pin out of the steering knuckle with a suitable puller 1 (see illustration).

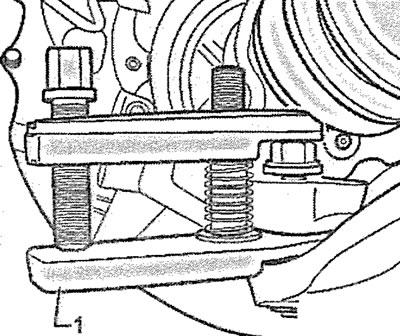

4.4. Press the guide arm ball joint pin out of the steering knuckle with a suitable puller 1
5. Unscrew the bolt 1 that secures the guide arm to the subframe (see illustration).

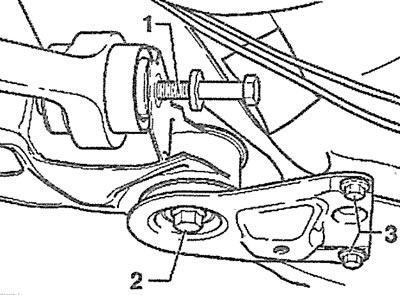

4.5. Unscrew the bolt 1, with which the guide lever is attached to the subframe: 2 and 3 - the bolts of the bracket, with which the subframe is attached to the body
6. Remove the guide arm.
Installation
Installation of the guide lever is carried out in the reverse order of its removal.
