Withdrawal
7. Mark the position of the rear wheel on the hub with paint. This will allow the assembly to set the balanced wheel in its original position.
8. Loosen the wheel bolts. In this case, the car must be on wheels.
9. Jack up the rear of the car, place it on jack stands and, having unscrewed the fastening bolts, remove the rear wheel.
10. Unscrew the screws 2, wring out the trim 3 thresholds and unscrew the screw 5 under the trim (see illustration).

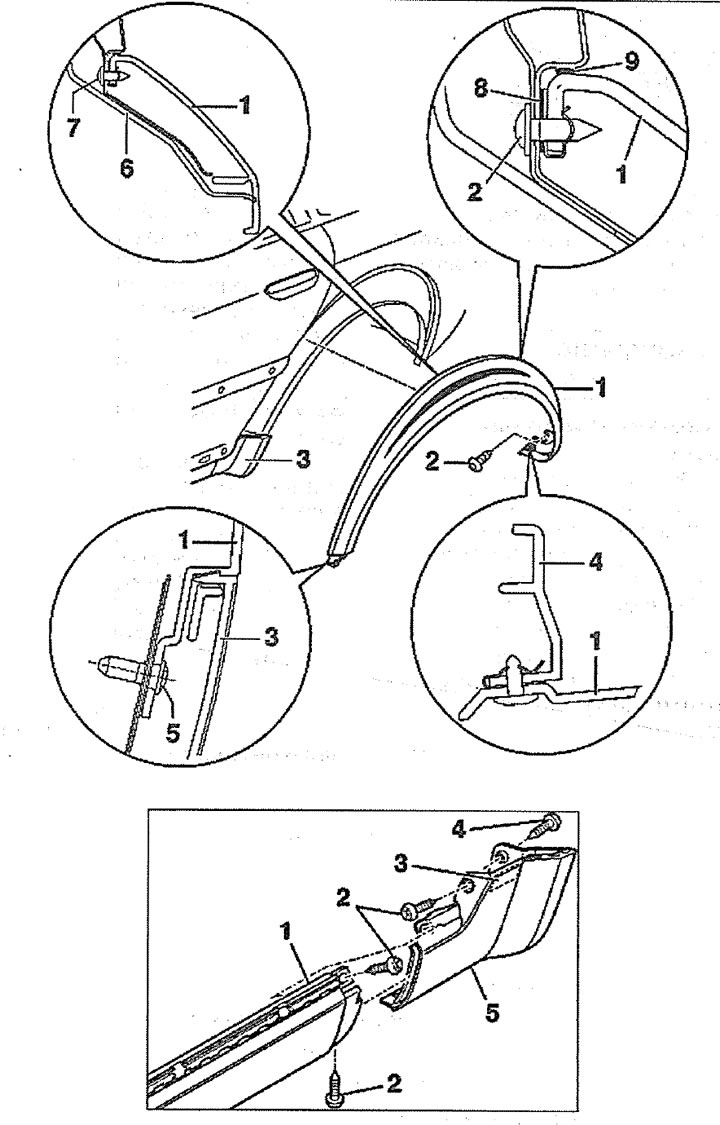

6.10. Rear fender liner and its fastening:
1 - wheel arch lining
2 - self-tapping screw. Tightening torque 1 Nm
3 - overlay of a threshold of a back door
4 - guide
5 - screw. Tightening torque 1 Nm
6 - fender liner
7 - screw. Tightening torque 1 Nm
8, 9 - double-sided self-adhesive tape
11. Remove the pad 1 of the wheel arch and remove the remnants of the adhesive mass (see illustration 6.10).
12. Disconnect the fender liner from the wing and remove it.
Installation
Installation is carried out in the reverse order of removal.
