Removal
1. Release the top and sides of the grille from the retaining tabs, move the top forward in the direction of the vehicle, and then remove the grille by lifting it up and releasing its bottom from the fasteners (see arrows in the illustration).

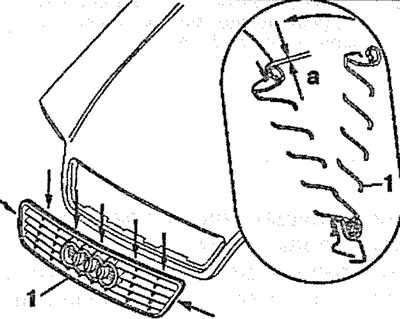

9.1 Remove the radiator grille by releasing it from the retaining tabs
a = 2±0.5 mm
Installation
The grille is installed in the reverse order of removal.
It is recommended to lubricate the contact surfaces with a suitable agent, such as liquid soap, to facilitate installation. When installed, the grille should lock into place with a clearly audible click.
