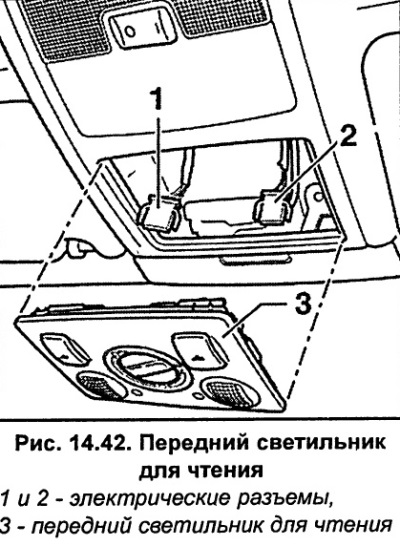

Use the blade of a thin screwdriver to pry off the lamp 3 (pic. 14.42), pull it out of the panel and disconnect electrical connectors 1 and 2.
Rear reading light.
Use the blade of a thin screwdriver to pry the lamp and remove it out of the panel.
Replace defective incandescent lamp.
Connect the electrical connectors to the lamp and install it in place.
Luggage compartment/ glove box/ footwell/ door/ entry door/ mirror lights

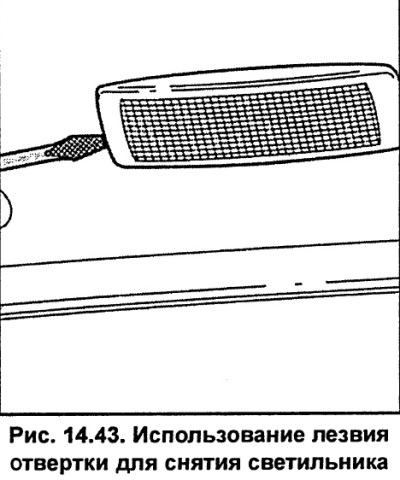

Insert the blade of a thin screwdriver into the groove of the lamp, press against the action of the retaining spring, carefully pry the lamp and remove it out (see fig. 14.43).
Attention. If there is no groove in the luminaire, place a screwdriver blade in the middle of one of the ends and check if it can be further operated against the spring force. Otherwise, install a screwdriver from the side of the other end of the luminaire.
Disconnect the electrical connector and remove the lamp.
Replace defective incandescent lamp.
If the luminaire mounting spring is deformed, bend it towards the outside of the luminaire.
Connect the electrical connector.
Install the lamp on the side of the electrical connector, tilt into the hole and snap the latch.
