Front sensors
Note: Front height sensor installation details are shown on illustrations 1.1a.
1. Jack up the car.
2. Disconnect the connector (3 in illustration 4.3), loosen the nut (2), unscrew the bolts (1) and remove the sensor, avoiding bending the upper retaining plate.
3. Installation is carried out in reverse order. The sensor lever should be located at the front. After completing the work, re-adapt the original suspension position using diagnostic equipment.
Rear sensors
Note: Rear height sensor installation details are shown on illustrations 1.2a.
4. Jack up the car.
5. Disconnect the connector (3 in the illustration), loosen the nut (2), unscrew the bolts (1) and remove the sensor, being careful not to bend the upper retaining plate.

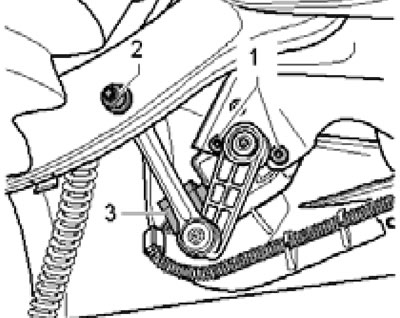

21.5. Rear height sensor installation details.
6. Installation is carried out in reverse order. The sensor lever should be located at the front. After completing the work, re-adapt the original suspension position using diagnostic equipment.
