Every 60,000 km.
Gearbox 097
1. Place a container under the automatic transmission to collect the fluid, then loosen the filler tube retaining nut, disconnect the tube and drain the fluid.
2. Install the tube in place and tighten the fastening nut to the required tightening torque.
3. Fill the gearbox with 3 liters of the required type of fluid. Drive the car and check the fluid level.
Gearbox 01N

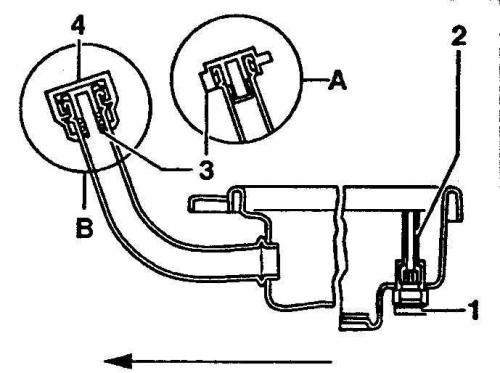

Automatic transmission fluid drain elements 01N
- 1. Inspection hole plug
- 2. Bypass tube
- 3. Plug and cap
- 4. Cap B must be replaced after removal
- A - cap on early models
- B - cap on later models
Execution order
1. Place a container to collect the fluid under the automatic transmission, unscrew the inspection hole plug and disconnect the bypass tube.
2. Drain the fluid and replace the plug and tube.
3. Fill with automatic transmission fluid until it begins to flow out of the overflow tube.
