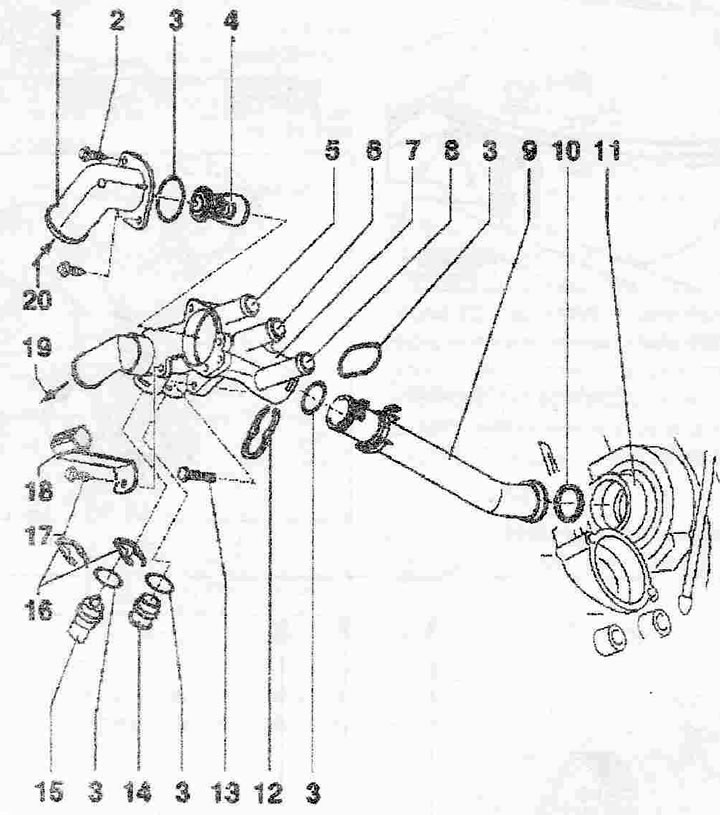

Thermostat and coolant pipe at the rear:
1. Connecting pipe
2. Bolt, self-tapping screw, 9 Nm
3. O-rings. Replace
4. Thermostat
5. To the heat exchanger
6. From the coolant expansion tank
7. Thermostat housing
8. From the heat exchanger
9. Coolant supply pipe rear
10. Sealing cuff. Replace
11. Cylinder block
12. Latches, check the security of fastening
13. Bolt. 10 Nm
14. Cork
15. Coolant temperature sender -G62-
16. Mounting brackets, check the security of fastening
17. Bolt, self-tapping screw, 6 Nm
18. Bracket
19. To the radiator from above
20. From the bottom of the radiator
