Removal
Drain the coolant.
Remove the timing belt.

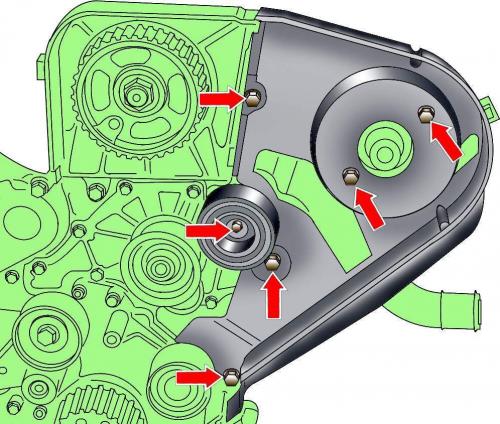

Fig. 3.4–55. Location of guide roller and rear toothed belt cover mounting bolts
Unscrew the guide roller mounting bolt (see Fig. 3.4–55).
Unscrew the bolts and remove the rear timing belt cover (see Fig. 3.4–55).

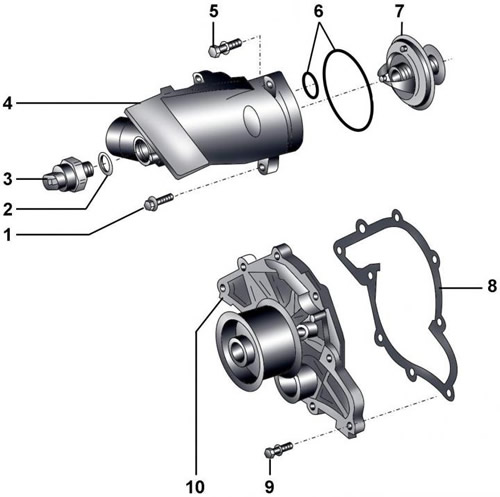

Fig. 7–24. Water pump and thermostat for vehicles with 3.3L diesel engines: 1 – bolt, 10 Nm; 2 – sealing ring; 3 – coolant temperature sensor, 25 Nm; 4 – thermostat housing; 5 – bolt, 22 Nm; 6 – sealing rings; 7 – thermostat; 8 - gasket; 9 – bolt, 10 Nm; 10 – water pump

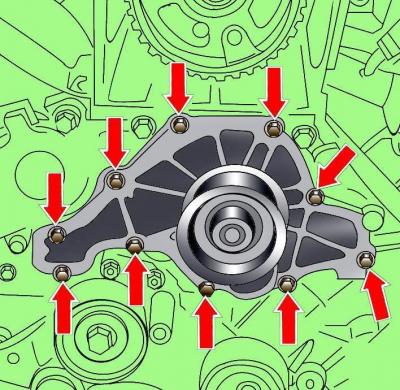

Fig. 7–25. Water pump mounting bolt locations on 3.3L diesel engines
Unscrew the bolts and remove the water pump (Fig. 7–25).
Installation
Installation is carried out in the reverse order of removal, taking into account the following.
When installing, it is necessary to use a new O-ring and gaskets.
When installing the thermostat, the air bleed valve must be located at the top.
While turning the water pump shaft, check the condition of the water pump bearings and replace them if necessary.
Install the timing belt.
Fill with coolant.
