Comfort systems control unit, rear lights
* - For the USA only.
The original text of the material can be found on the website: AUDIMANUAL.ru
* - For the USA only.
The original text of the material can be found on the website: AUDIMANUAL.ru

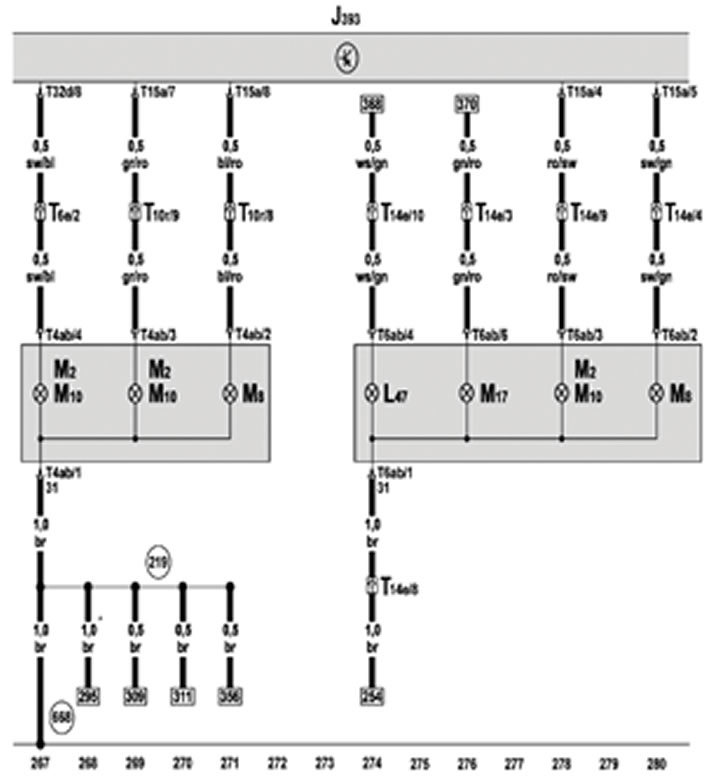

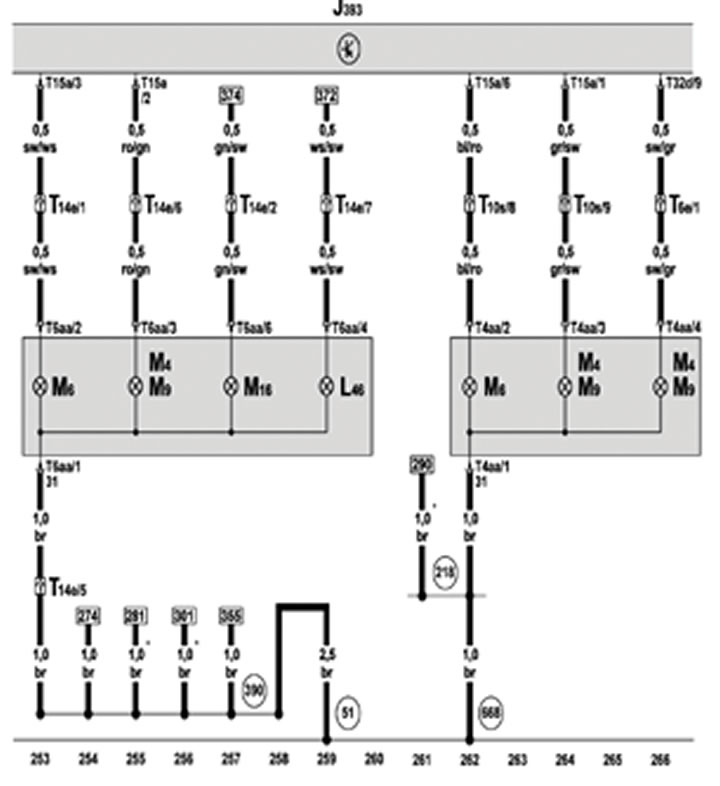

Comfort systems control unit, rear lights (Audi Q7-4L-D)
* - For the USA only.
The original text of the material can be found on the website: AUDIMANUAL.ru
