Table of contents: Removal ↓ Installation ↓
Removal
Remove the pre-catalyst. Remove the exhaust manifold. Remove the oil filter.

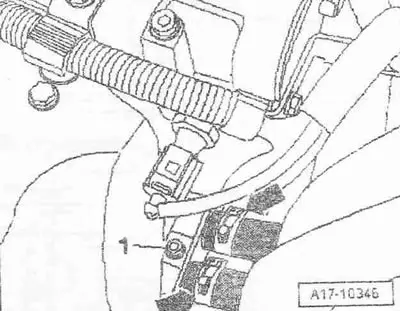

Unscrew bolt "1". Clamp coolant hoses "arrows" with clamps "3094" and remove.

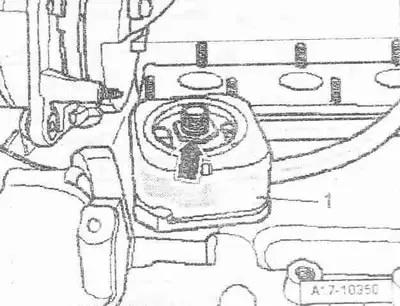

Unscrew the nut "arrow" and remove the oil radiator "1".
Installation
Installation is in the reverse order, replacing the gaskets. Use clamps of the appropriate series to secure all hose connections. Ensure free access to adjacent parts. Install the oil filter and check the oil level. Install the exhaust manifold. Install the pre-catalyst.
