Withdrawal

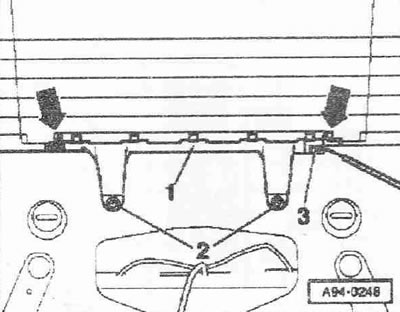

Do not press the foot brake pedal. Remove the lower lining of the trunk lid. Disconnect connector -3-. Unscrew bolts -2-. Pull auxiliary brake light -1- upwards out of guides -arrows-.
Installation
Install in reverse order, replacing the upper brake light completely if the LEDs are damaged. Install the boot lid lower trim. Tightening torque: Upper brake light to rear cover: 2.3 Nm.
