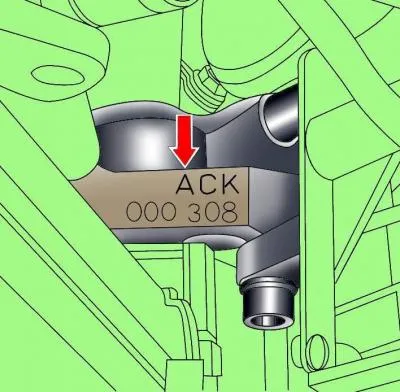

The code and engine number are additionally duplicated on a plate located on the toothed belt housing.

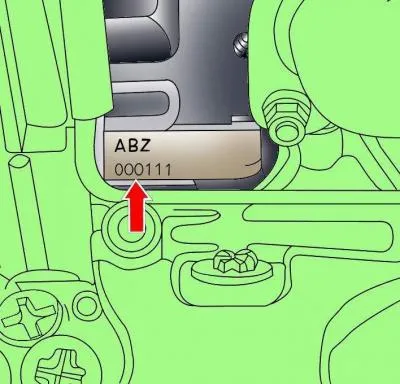

Pic. 2–33. Number location on V6 petrol engines
On V6 petrol engines, the engine number is stamped on the right inner side of the cylinder block between the cylinder head and the hydraulic pump (pic. 2–33).
Pic. 2–34. Number location on V8 petrol engines
On V8 petrol engines, the engine number is stamped on the left side of the cylinder block above the hydraulic pump (pic. 2–34).

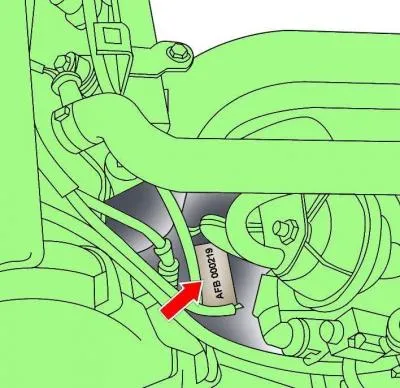

On V8-5V petrol engines, the engine number is stamped on the left side of the cylinder block (pic. 2–35).

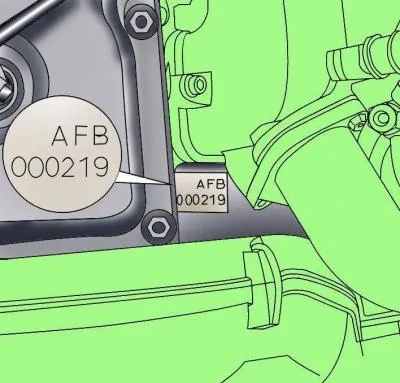

Pic. 2–35. Number location on V8-5V petrol engines
Pic. 2–36. Number location on V6 diesel engines
On V6 diesel engines, the engine number is stamped on the right inner side of the cylinder block between the cylinder head and the high pressure fuel pump (pic. 2–36).
